Propeller Shaft Guards

Metal guards for the drive shafts were introduced, as shown by the service bulletins below, in mid-1946. They remained an available option, as indicated by this item from the reproduction Special Equipment Catalog 1957-1958.

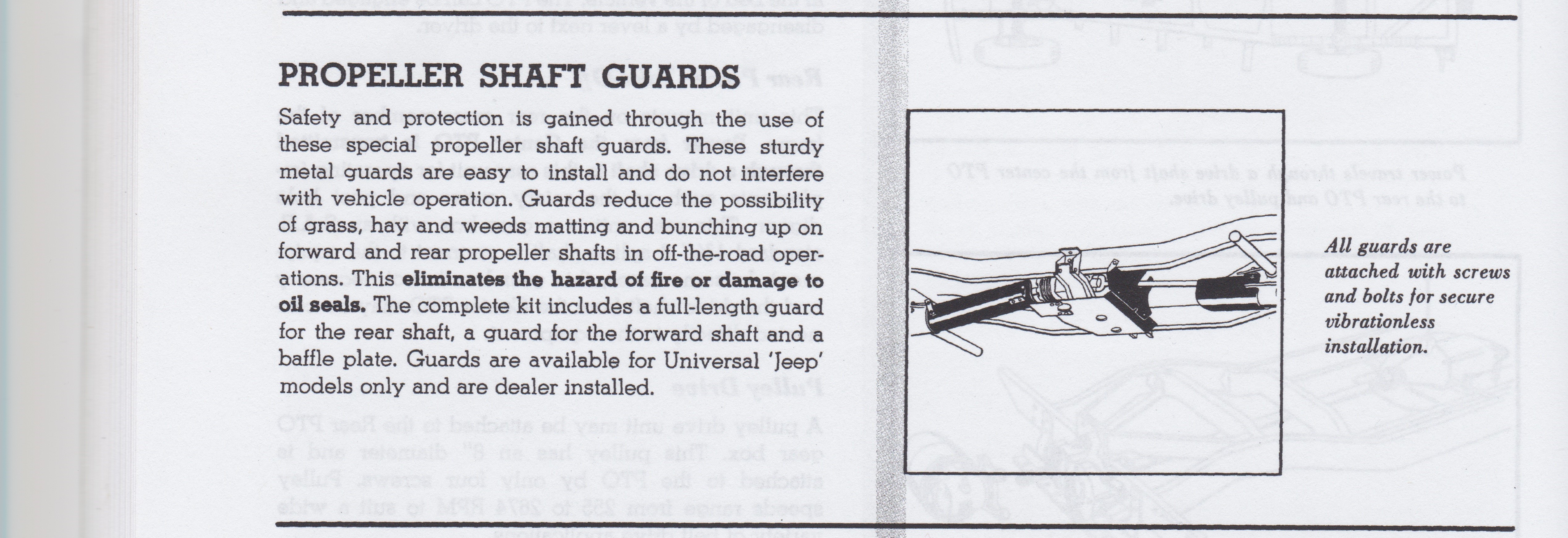

From the reproduction Special Equipment Catalog 1957-1959

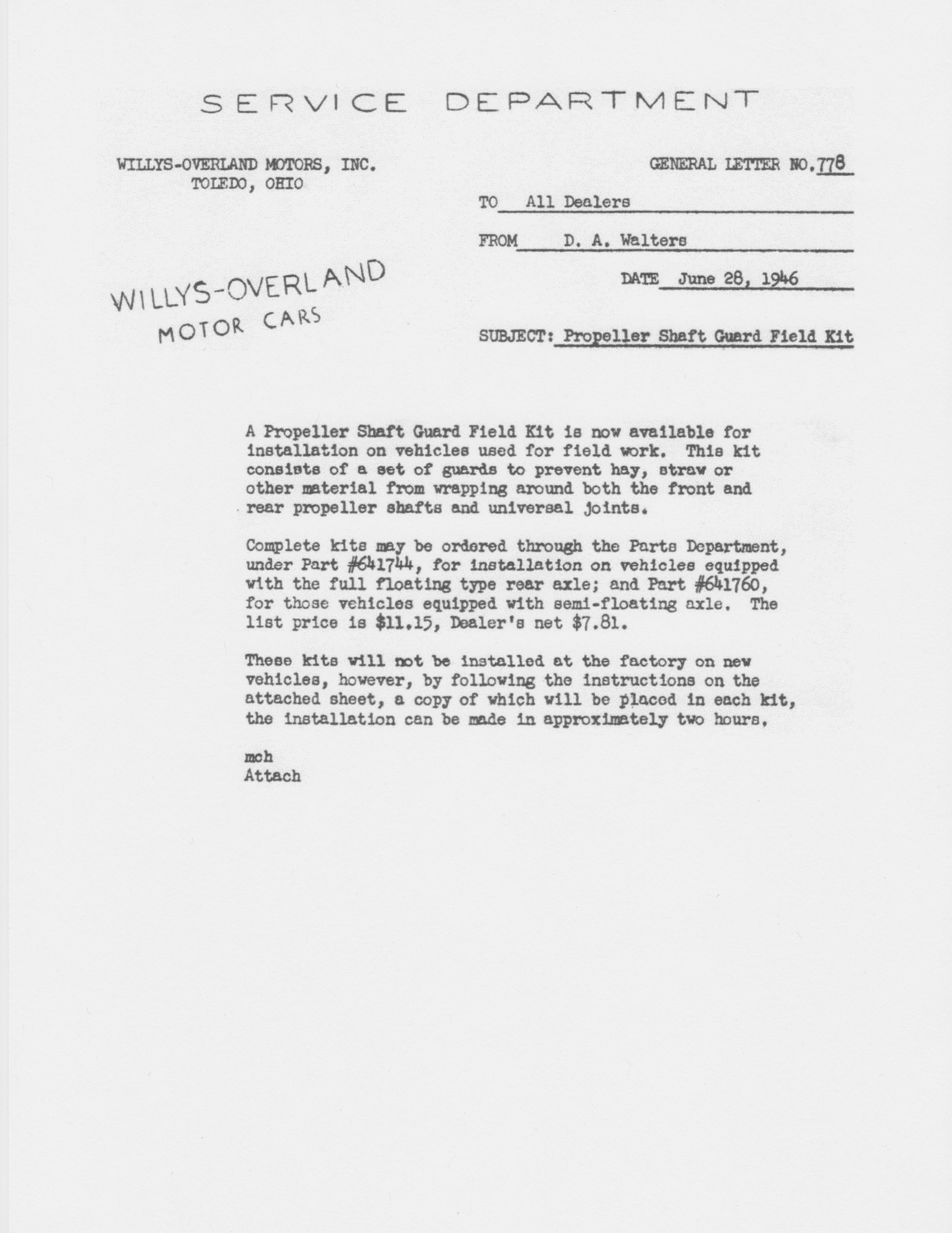

Service Bulletin 778

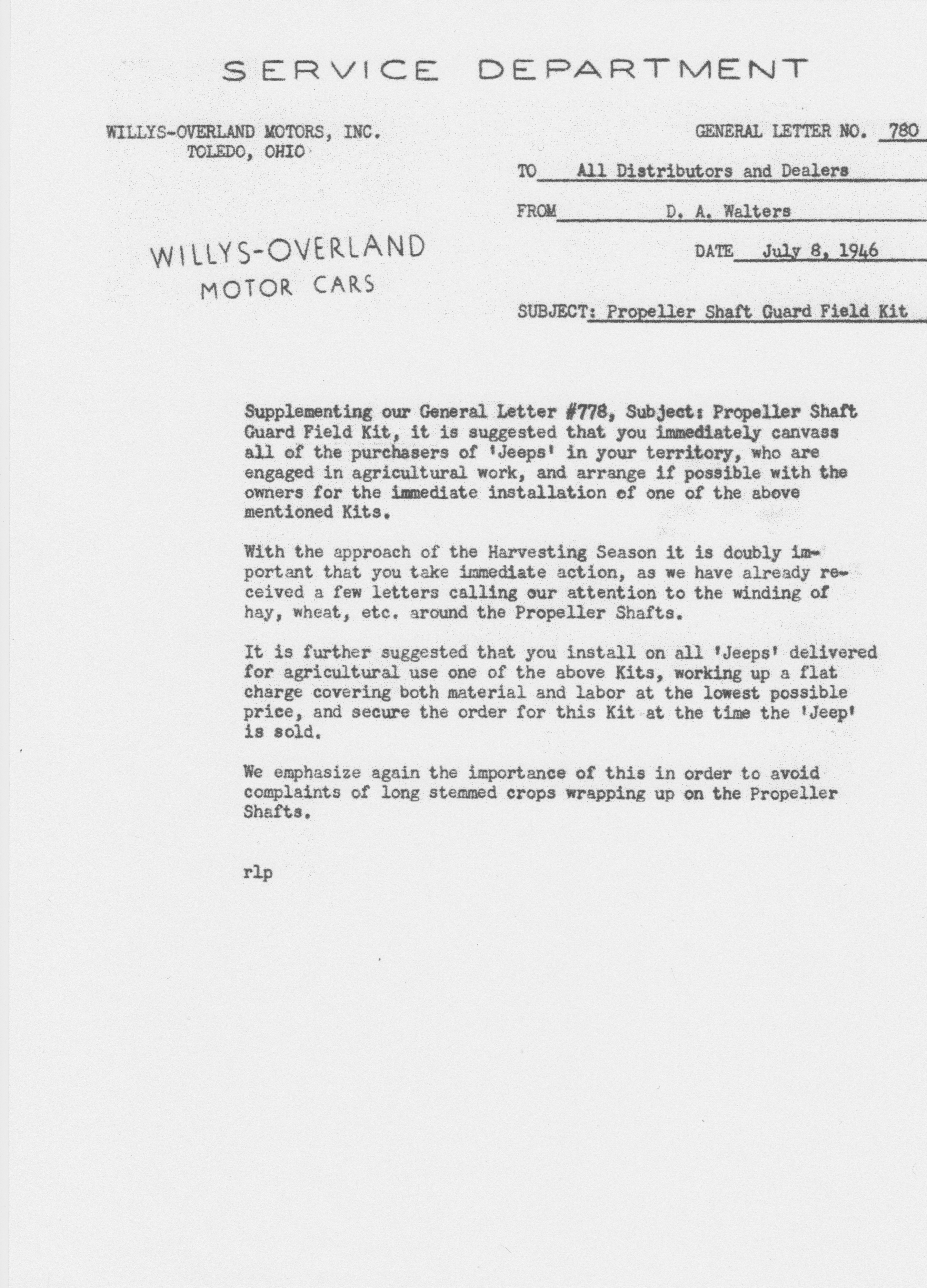

Service Bulletin 780

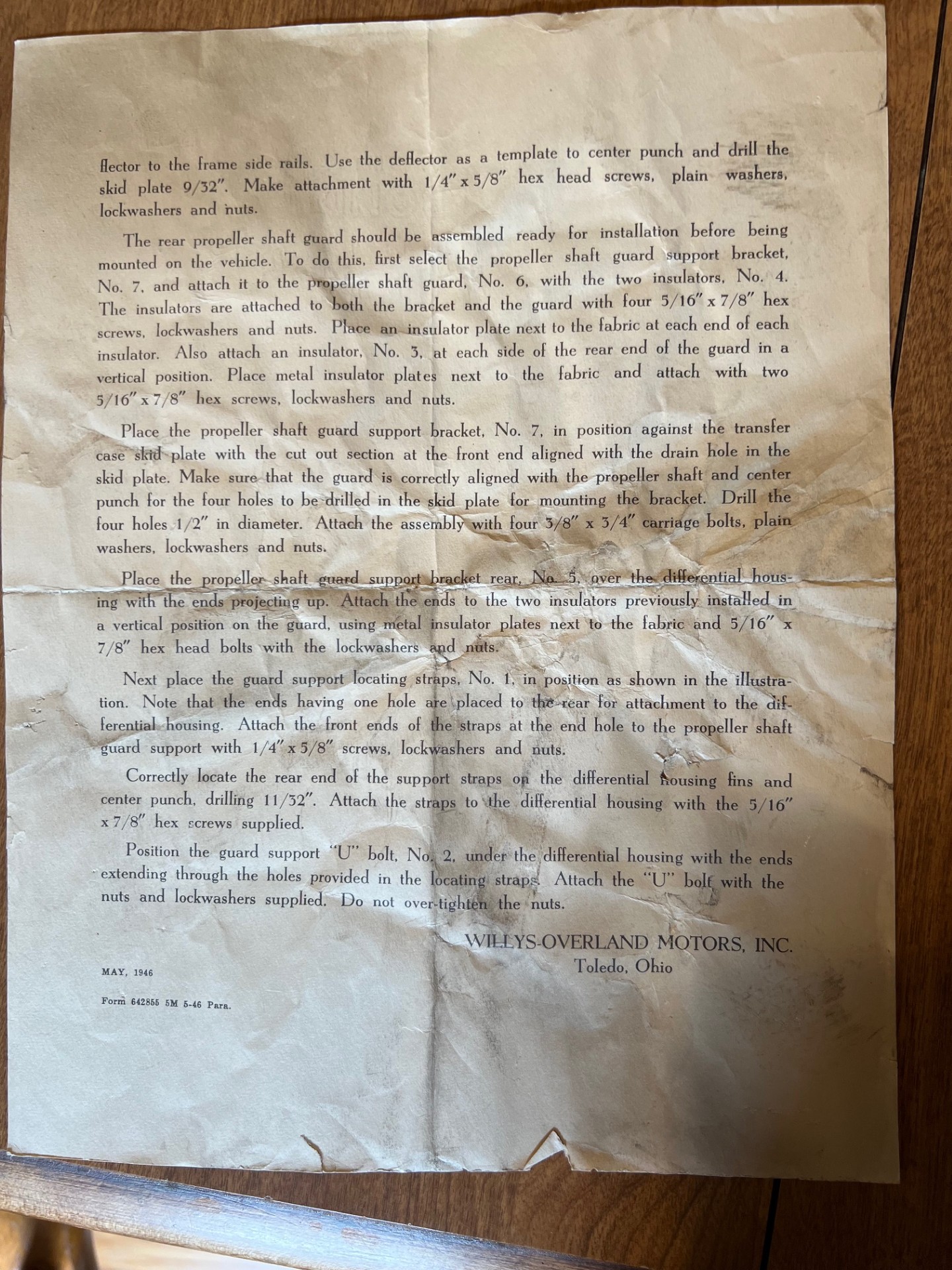

Installation Instructions

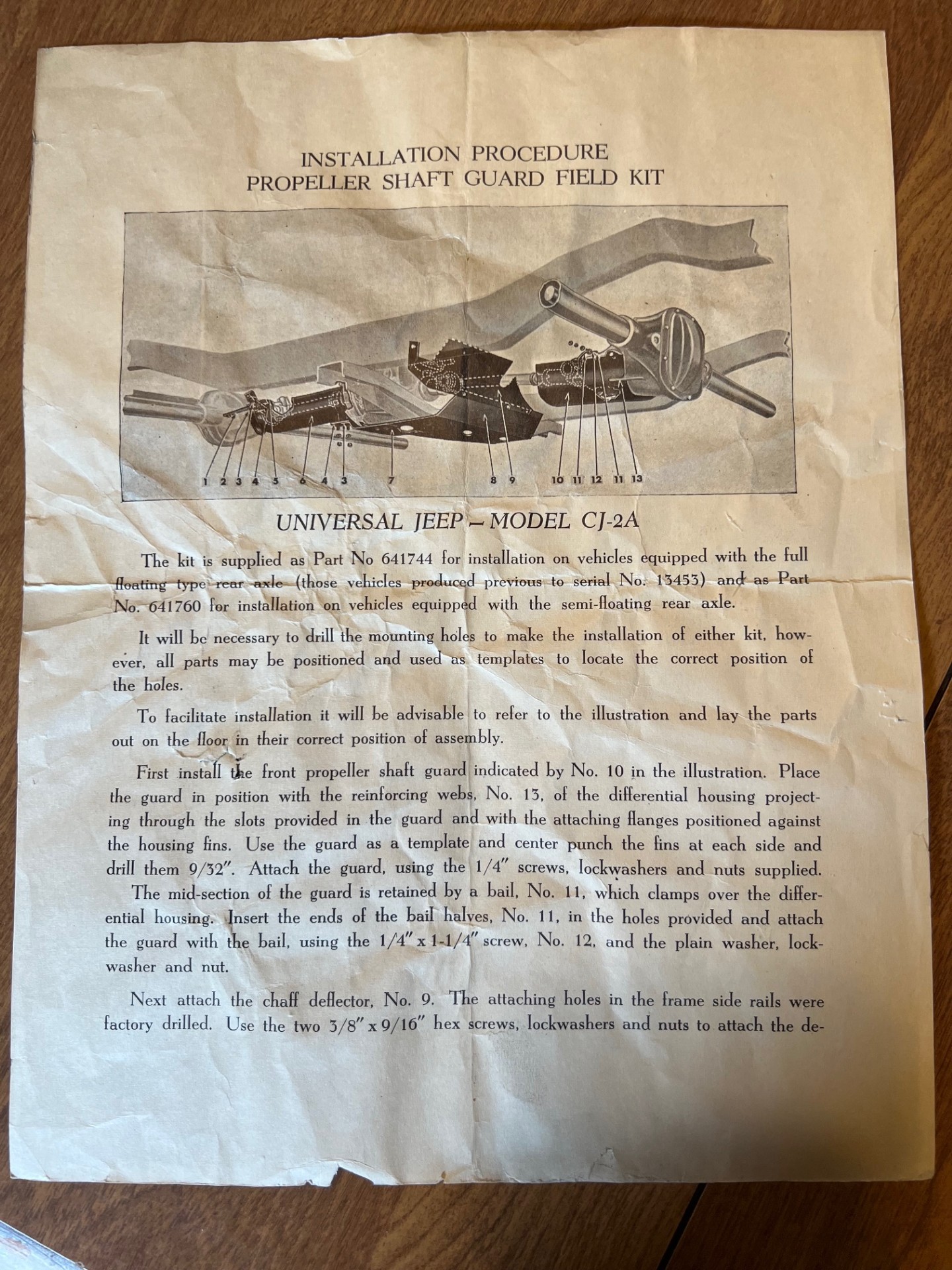

Scott Sperling sent us photos of the installation instructions.

Todd Paisley found these instructions, indicating the guards were available for the CJ-5, CJ-6, and the FC-150

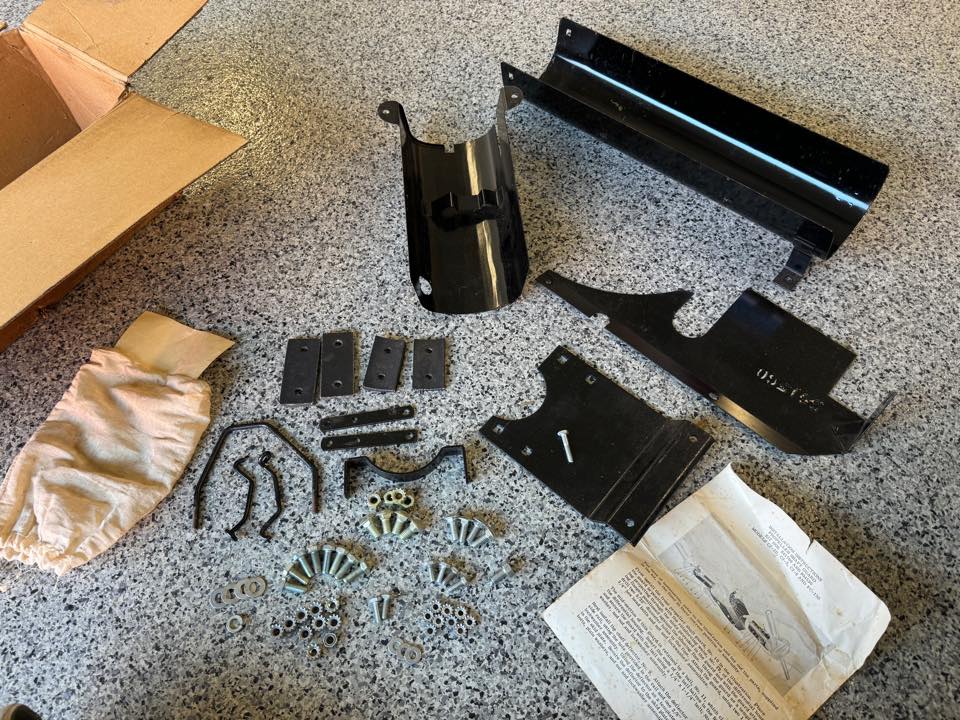

Bill Reiss posted these pictures of a NOS kit.

Scott’s Demo Jeep Shaft Guard Installation

Scott uses his “body-off” CJ2a to demonstrate how the various Farm Jeep components work. He has added a set of shaft guards, painted bright yellow inside to make them easily visible to onlookers. Scott has sent us several pictures that illustrate the installation.

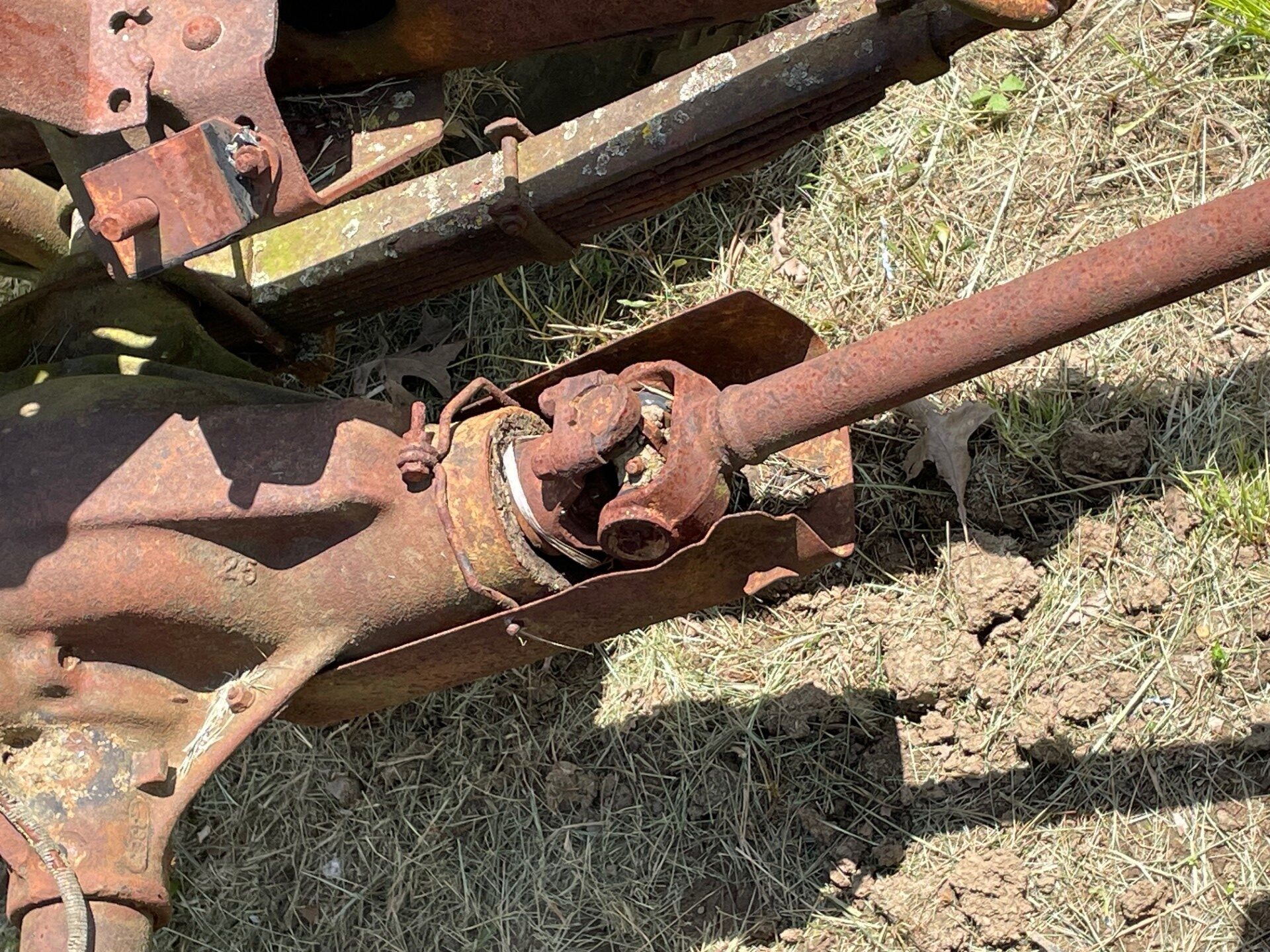

Original front axle piece

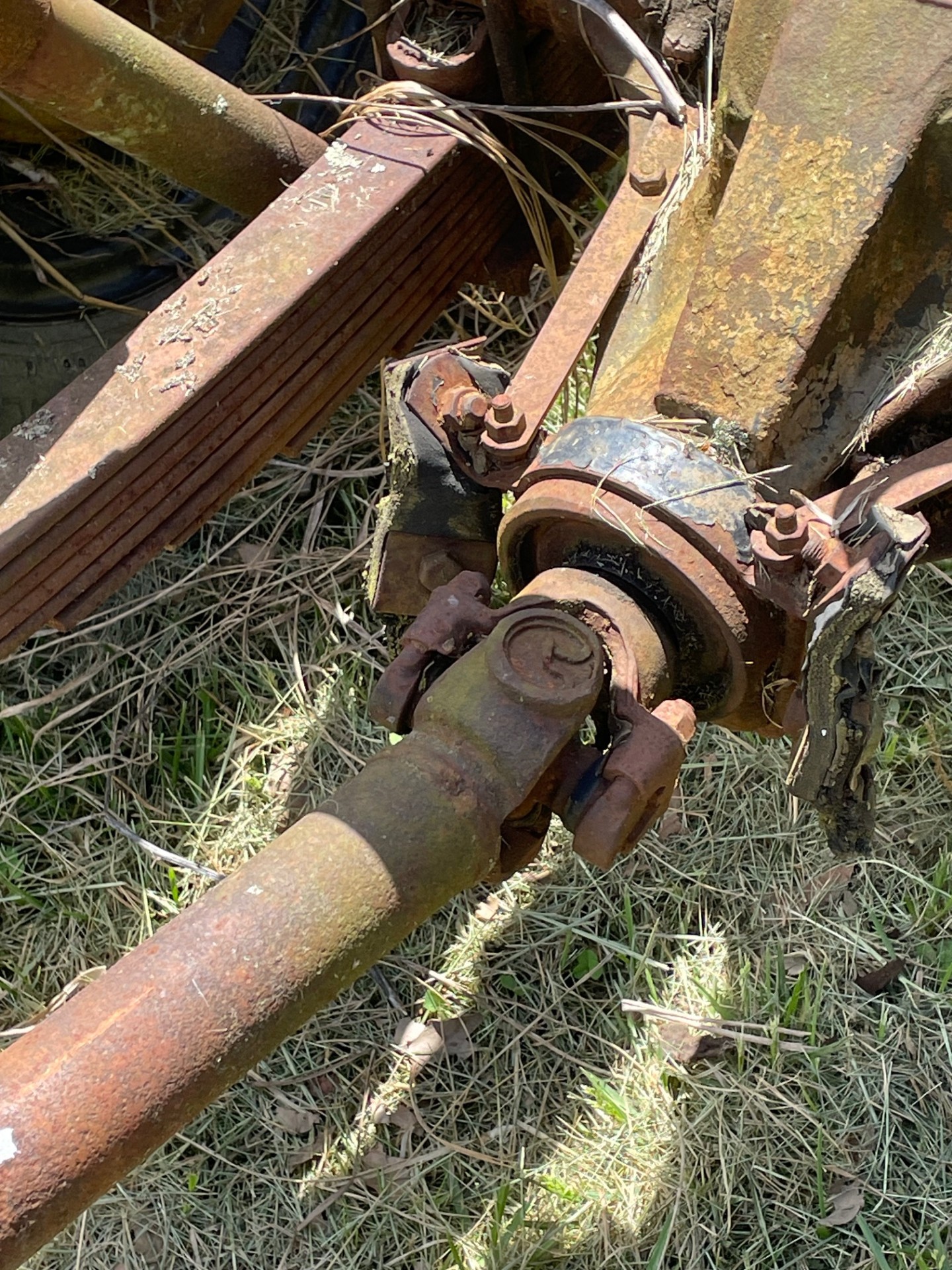

Original rear axle piece

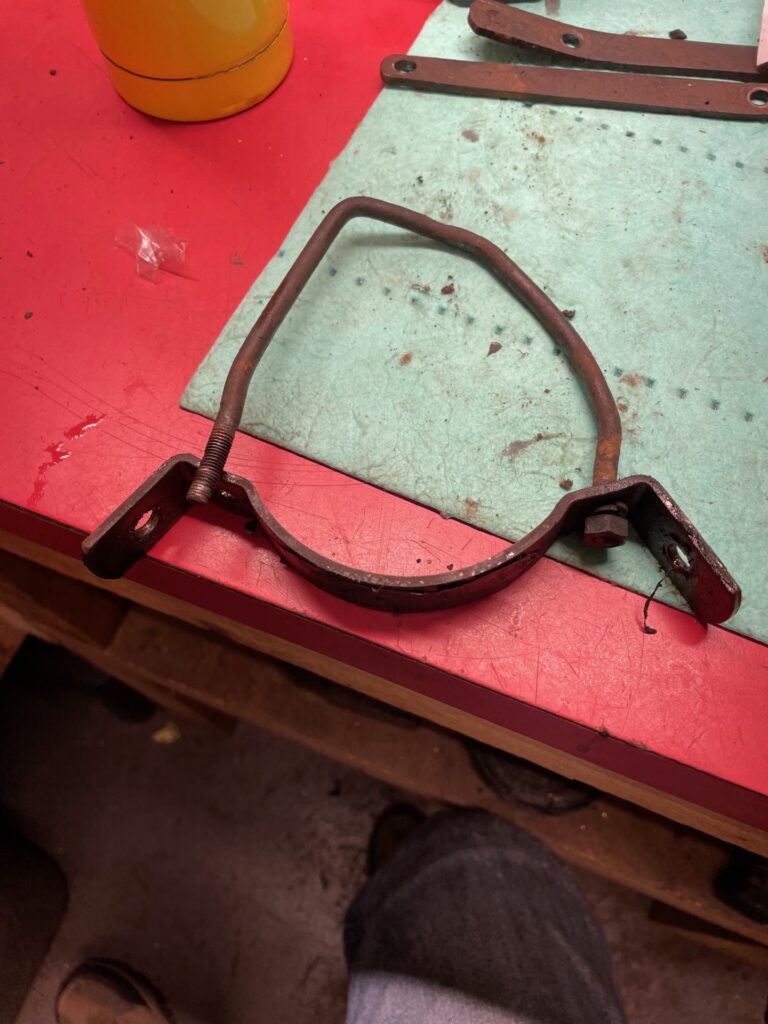

Original real axle strap

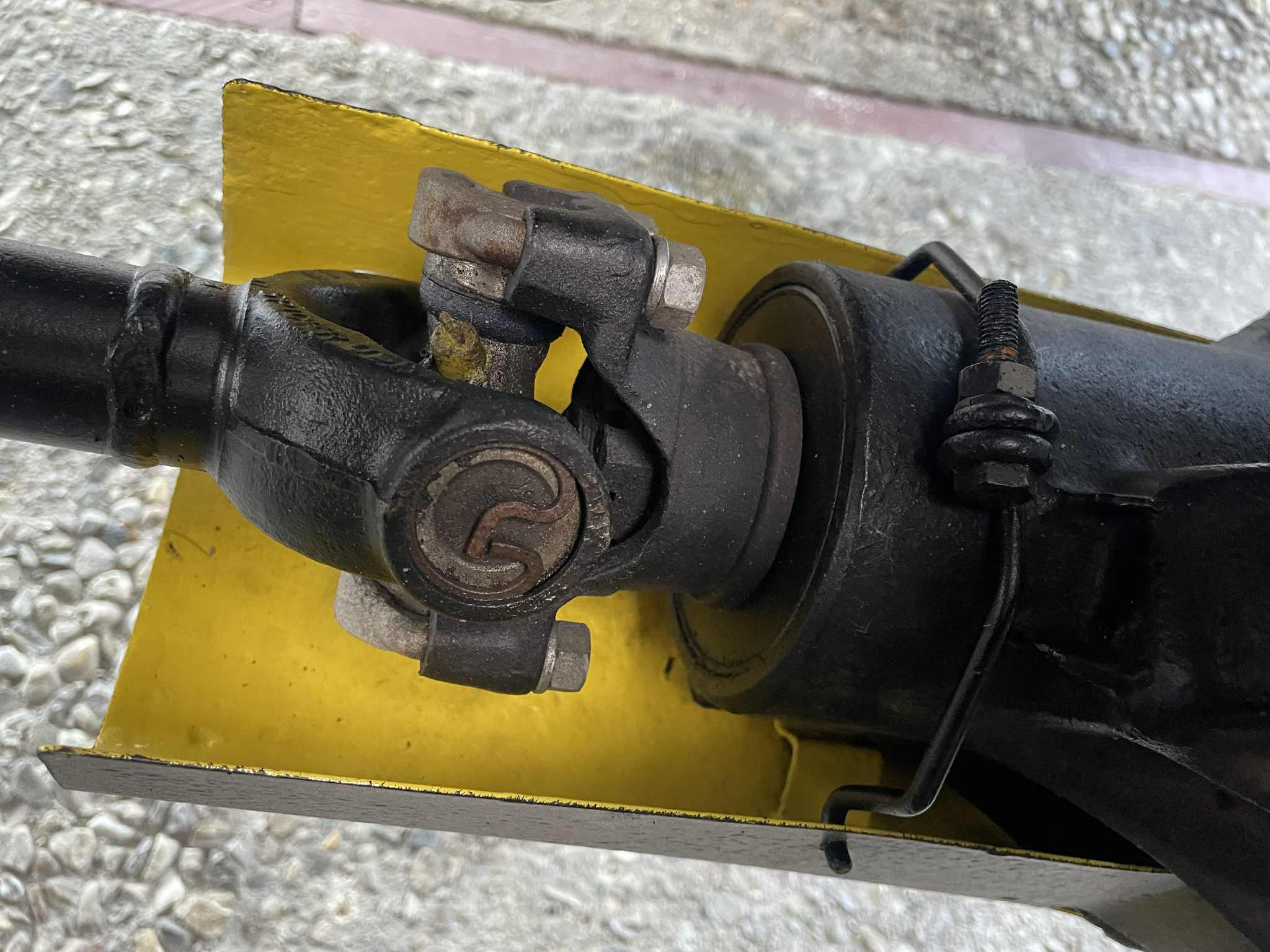

Front axle bracket – complete

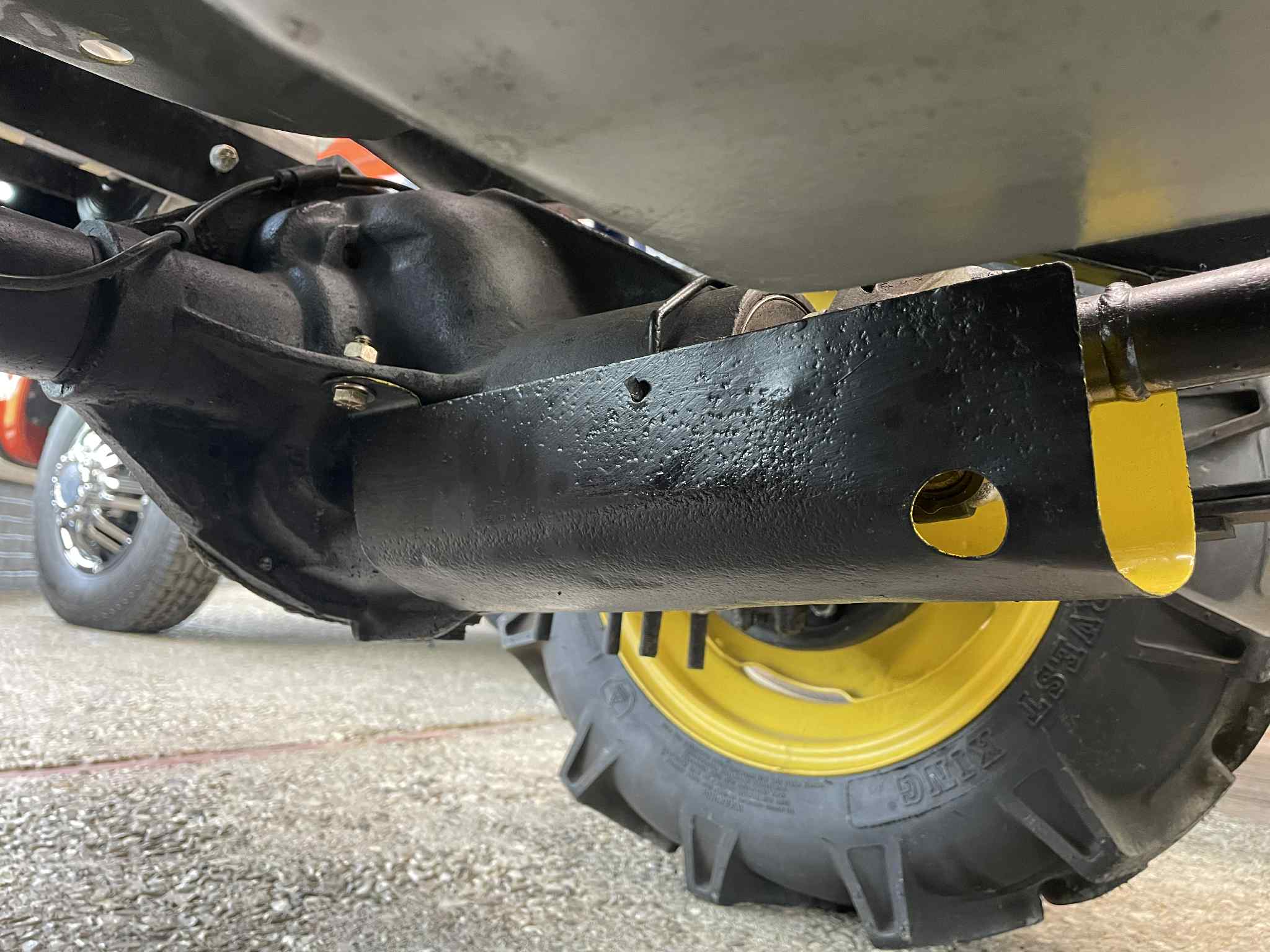

Front axle guard – complete

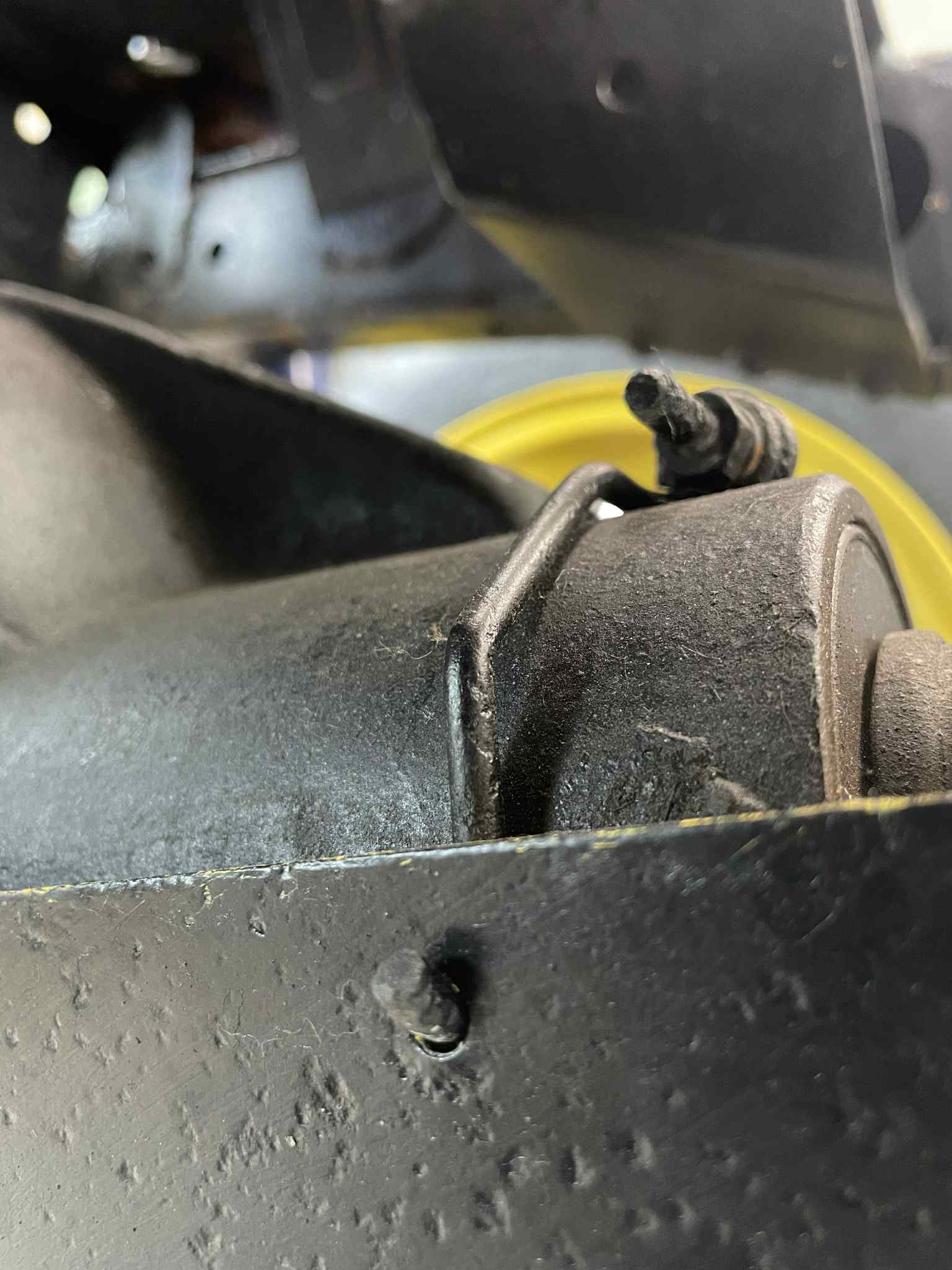

Front axle wire clamp

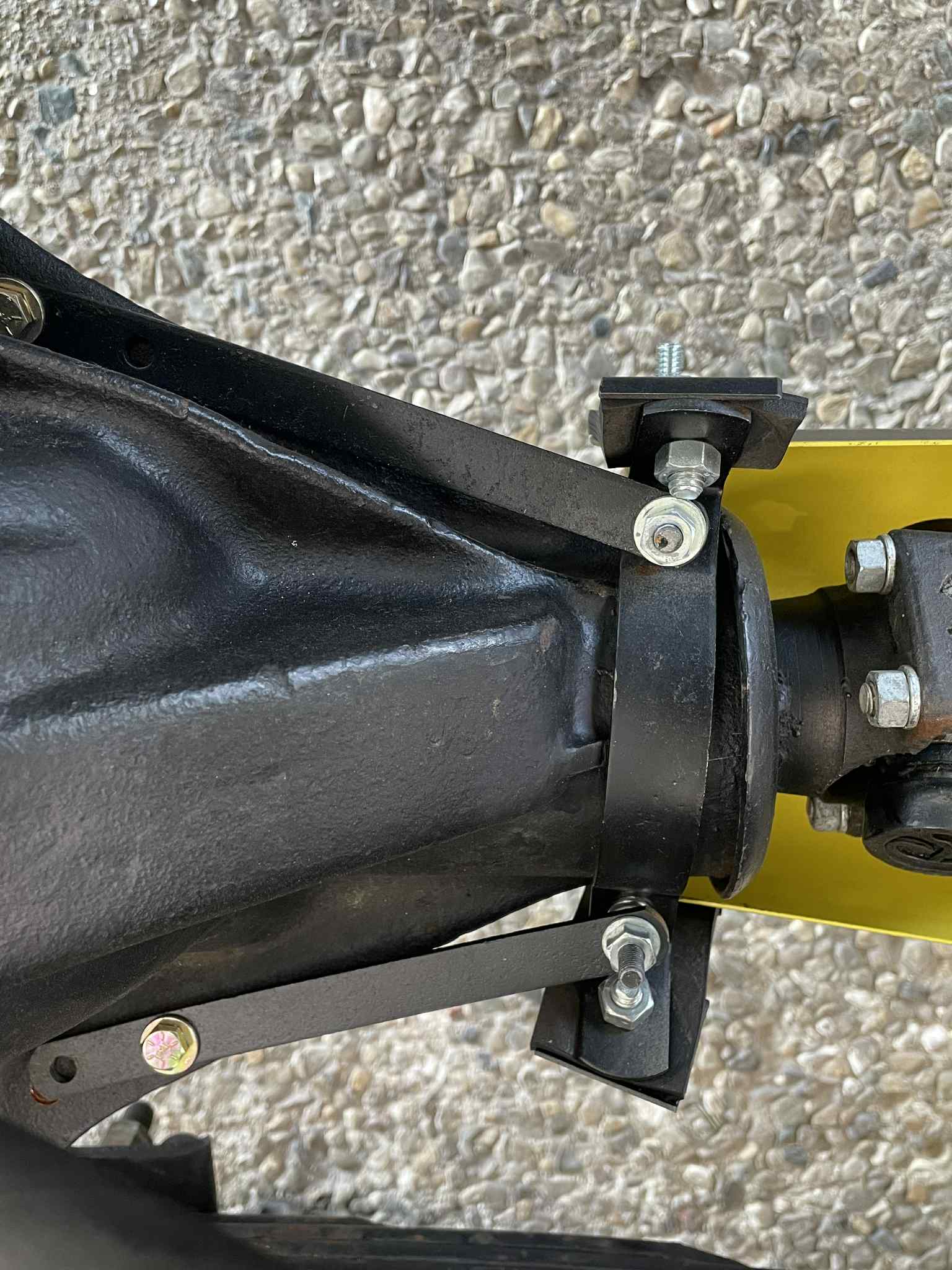

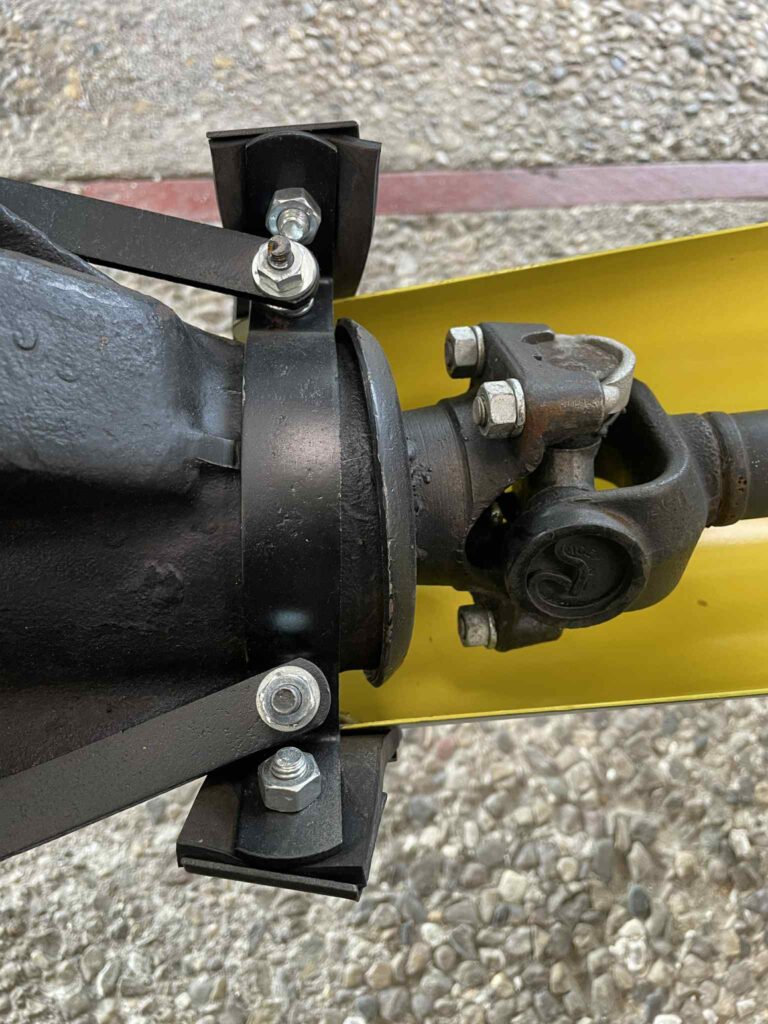

Rear at axle attachment – complete

Rear at axle attachment – complete

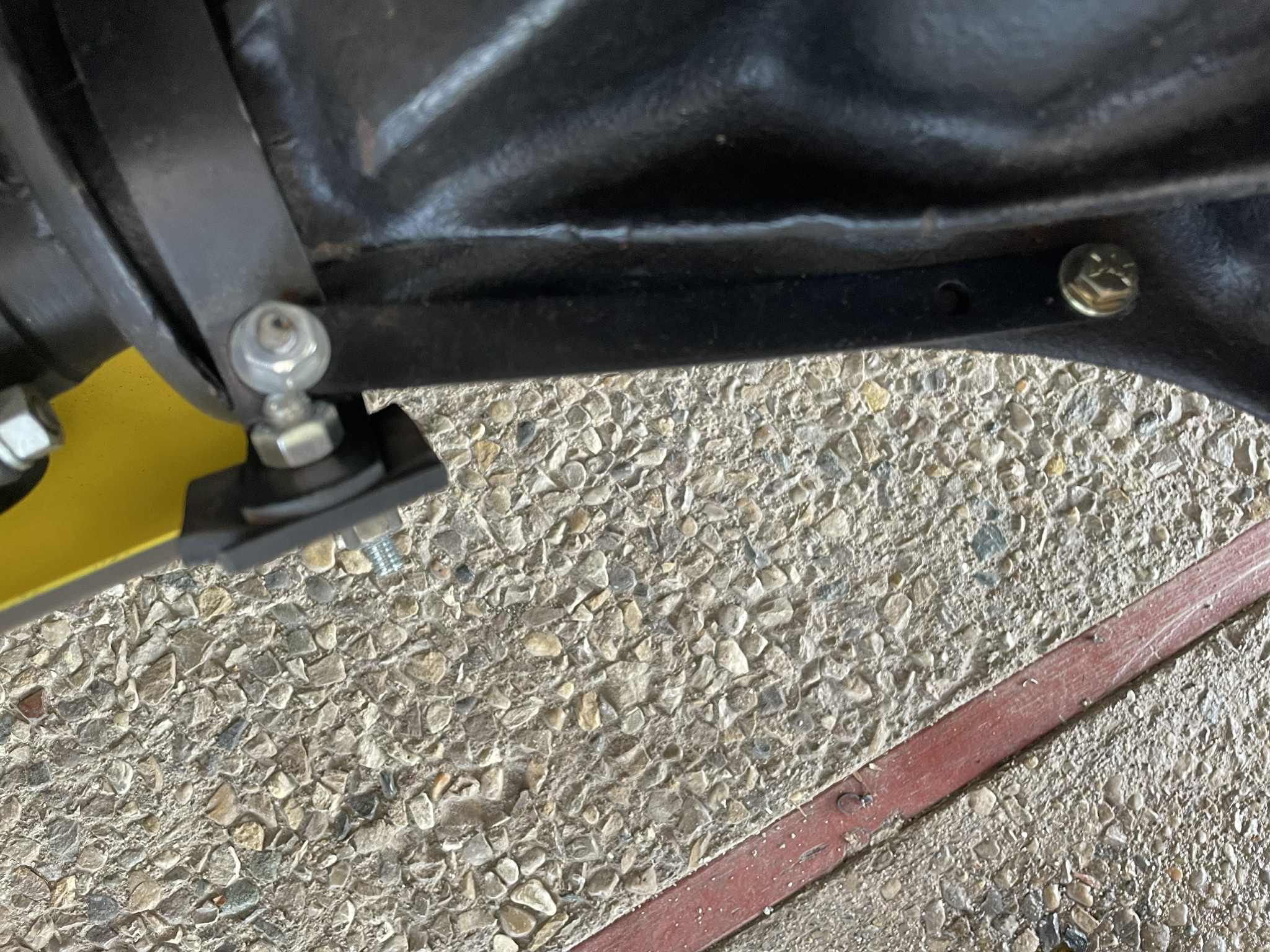

Rear at axle strap -complete

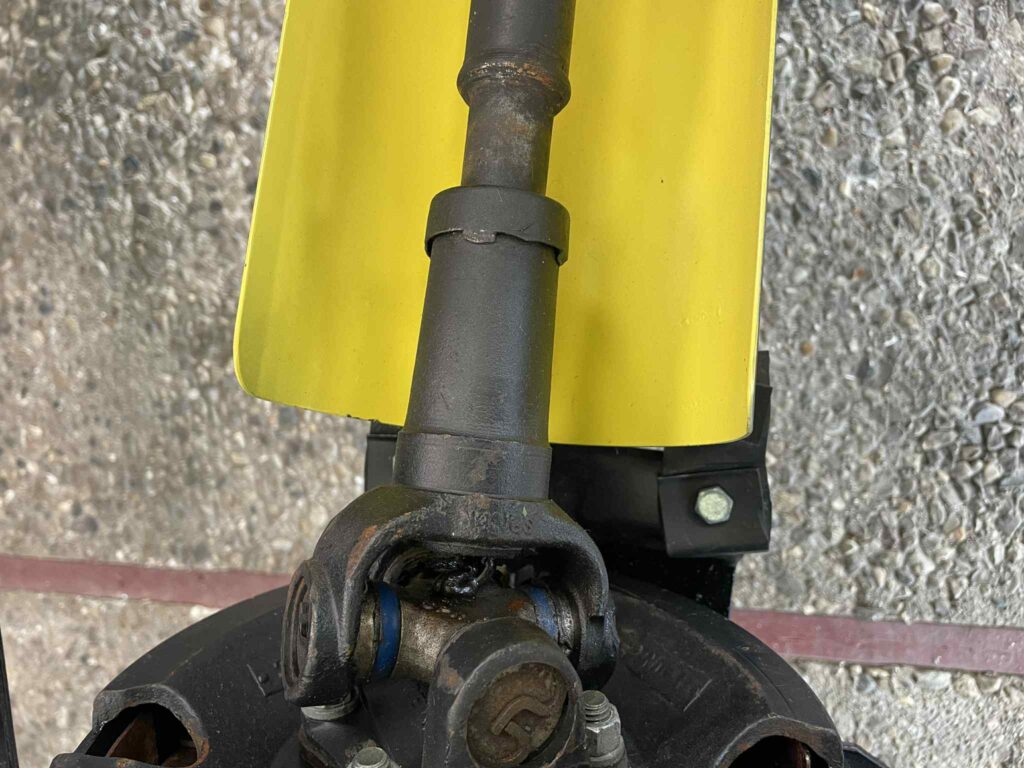

Rear at brake drum – complete

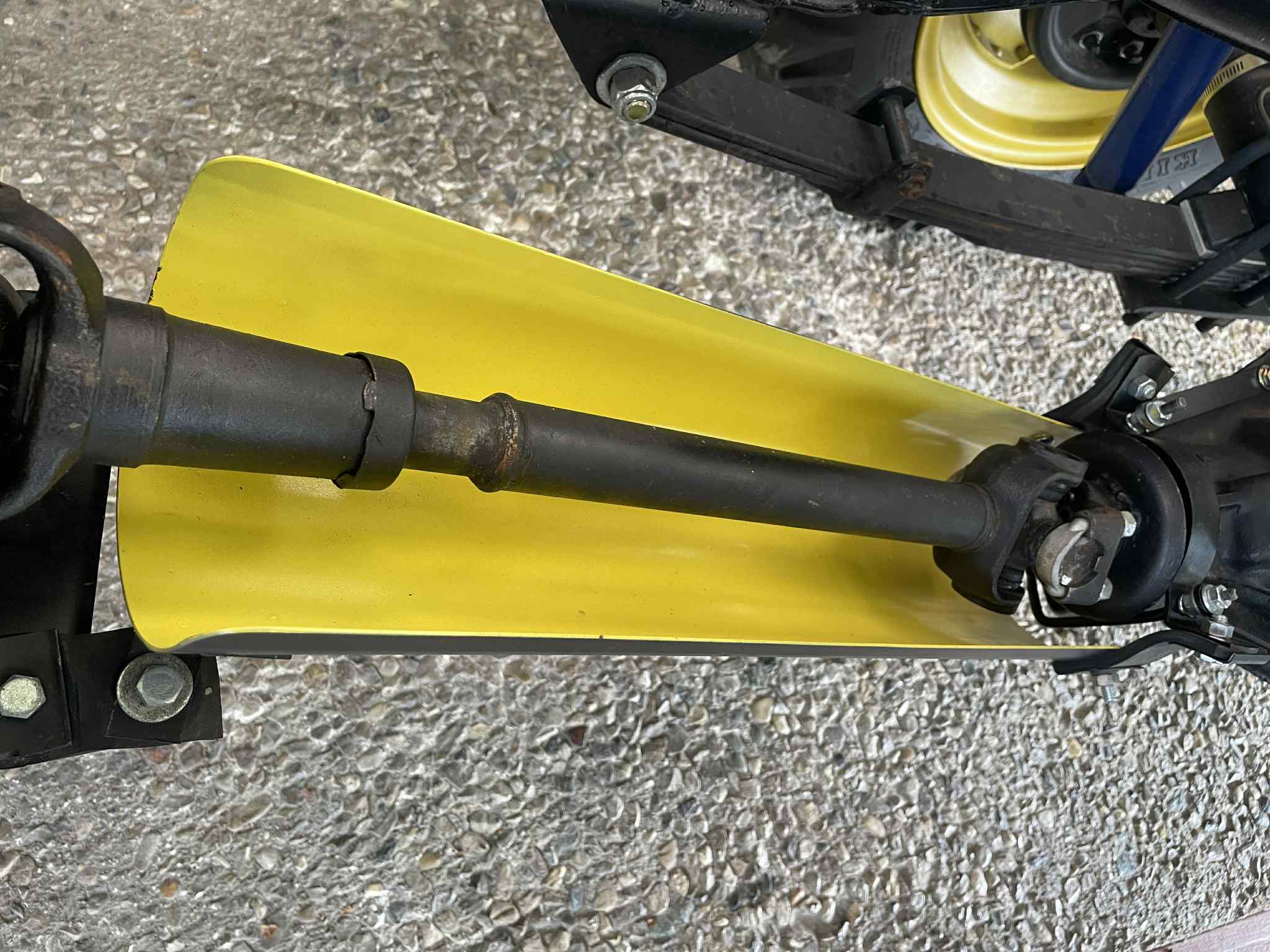

Rear – complete

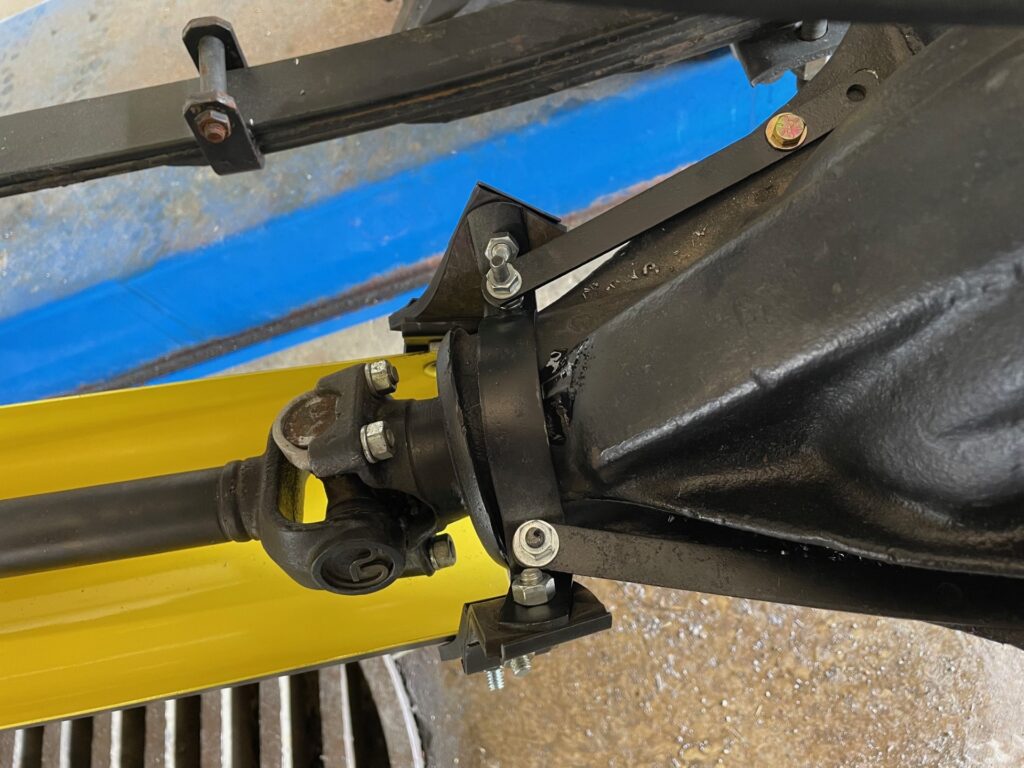

Rear shield mounts – complete

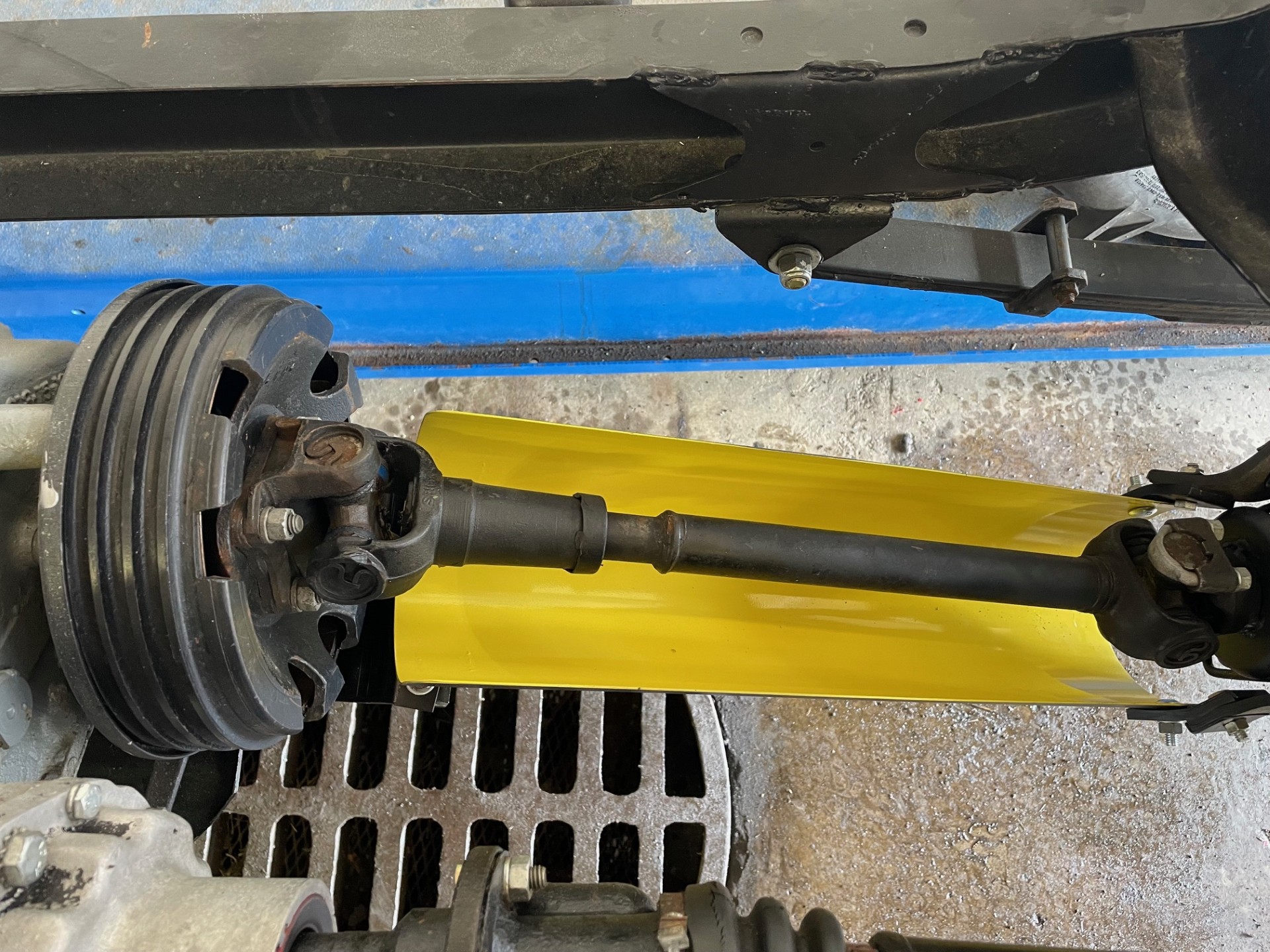

Rear shield top

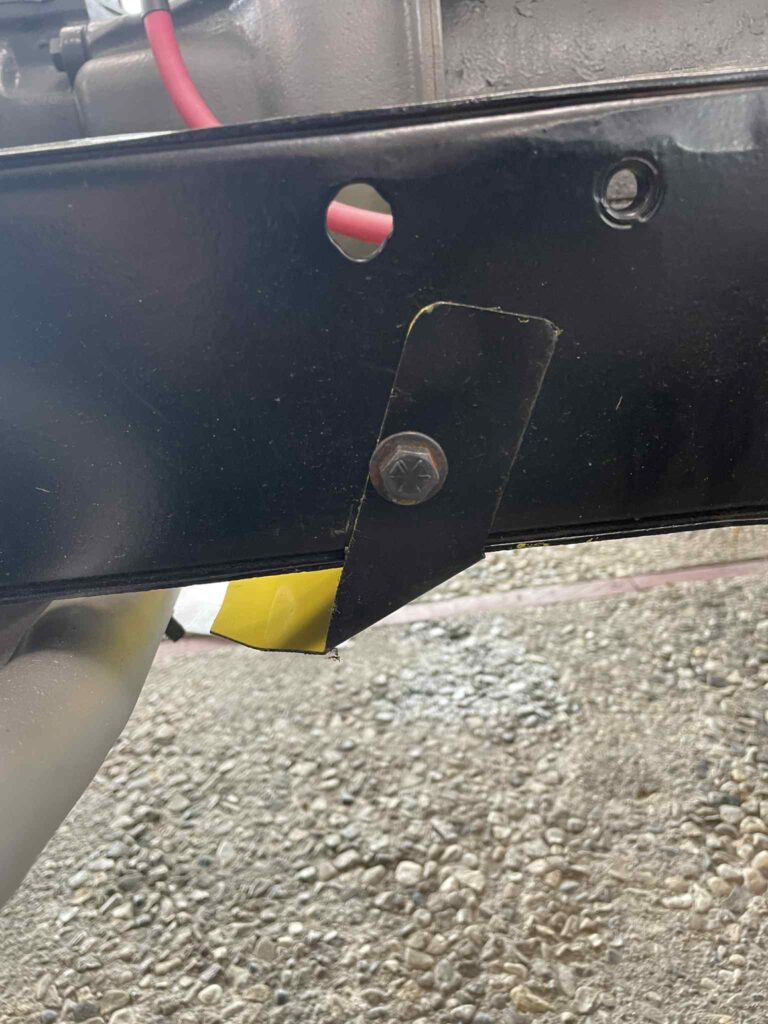

Transfer case shield bracket – complete

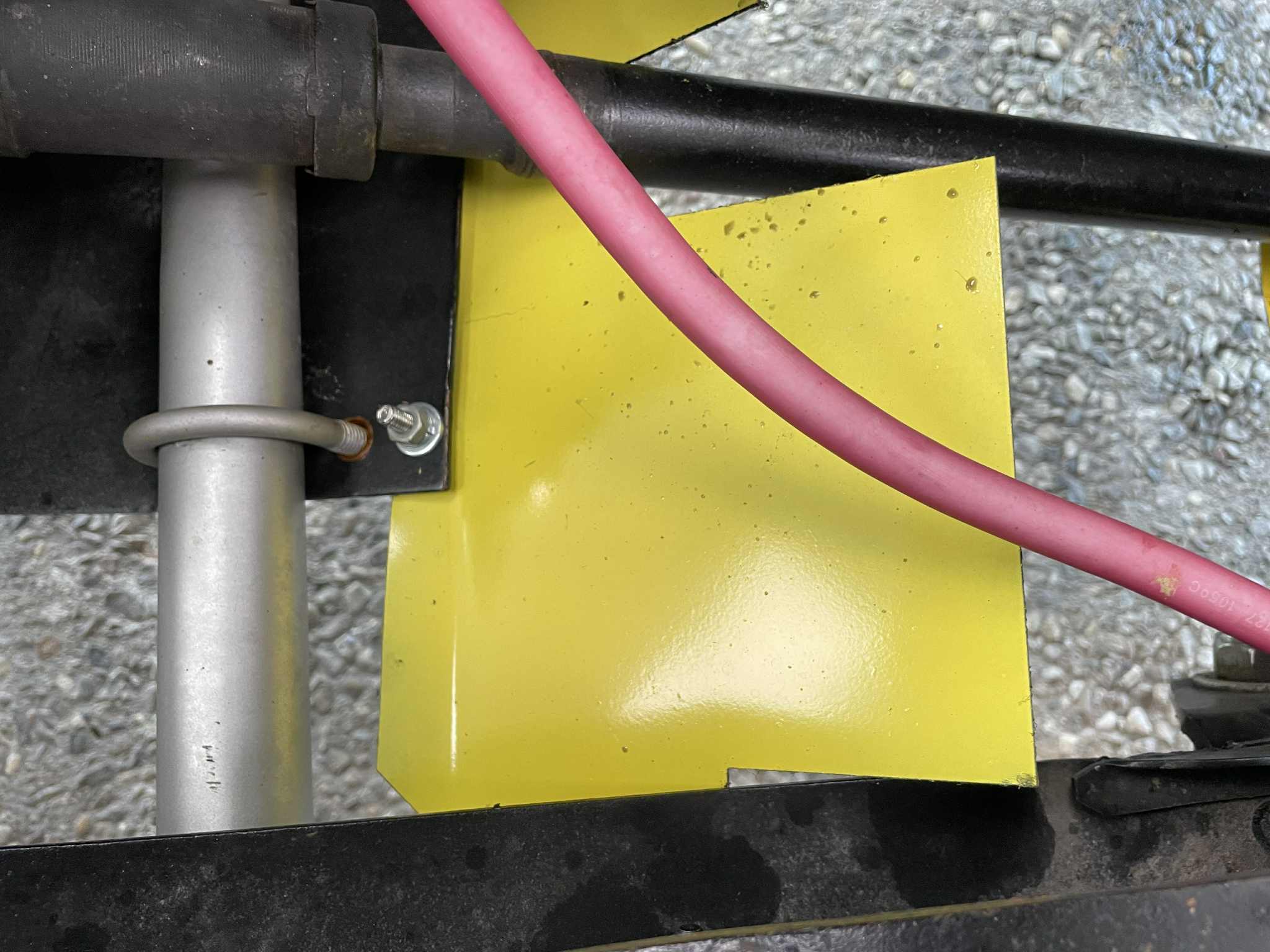

Transfer case shield – complete

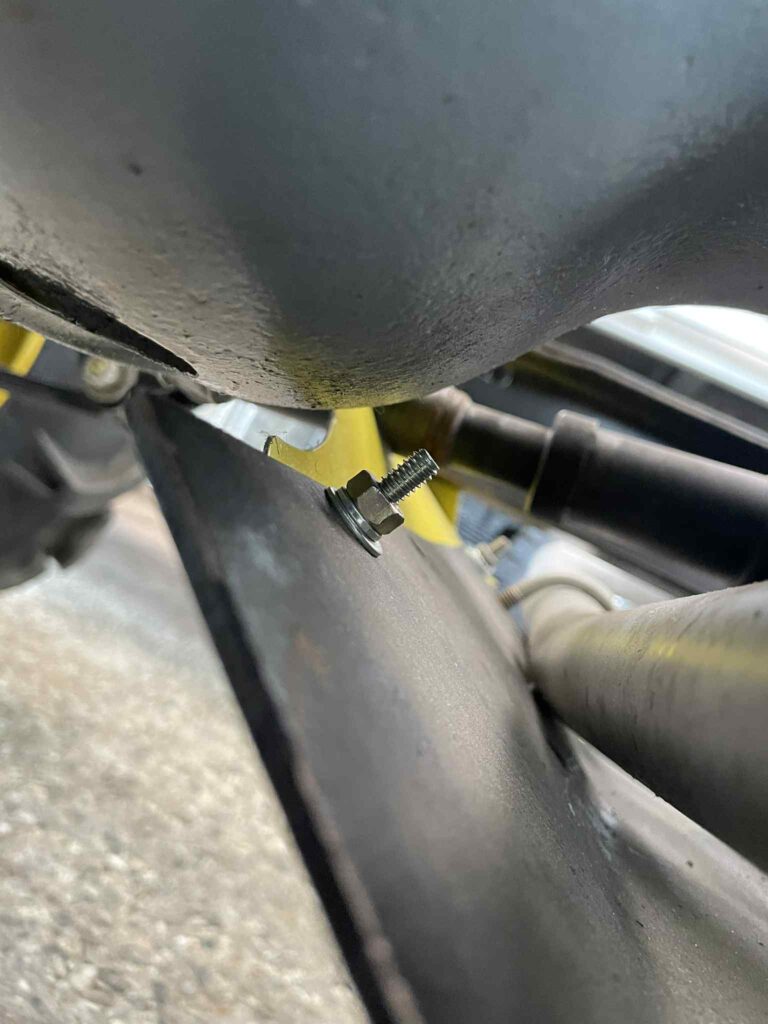

Transfer case shield mount – complete
